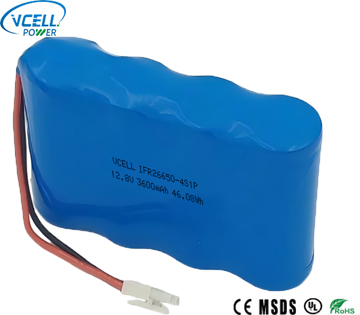

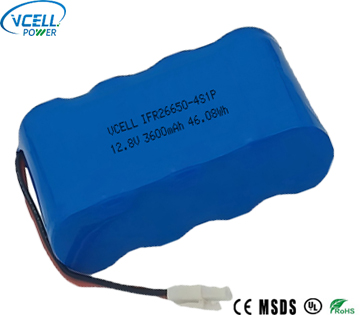

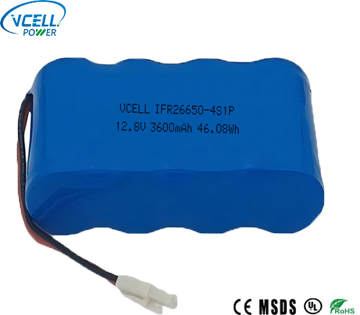

12.8V 3600mAh 4S1P 26650 LiFePo4 battery
12.8V 3600mAh 4S1P 26650 LiFePo4 battery
12.8V 3600mAh 4S1P 26650 LiFePo4 battery
12.8V 3600mAh 4S1P 26650 LiFePo4 battery
12.8V 3600mAh 4S1P 26650 LiFePo4 battery
12.8V 3600mAh 4S1P 26650 LiFePo4 battery
12.8V 3600mAh 4S1P 26650 LiFePo4 battery
12.8V 3600mAh 4S1P 26650 LiFePo4 battery
Main Image
12.8V 3600mAh 4S1P 26650 LiFePo4 battery
12.8V 3600mAh 4S1P 26650 LiFePo4 battery
12.8V 3600mAh 4S1P 26650 LiFePo4 battery
12.8V 3600mAh 4S1P 26650 LiFePo4 battery
12.8V 3600mAh 4S1P 26650 LiFePo4 battery
12.8V 3600mAh 4S1P 26650 LiFePo4 battery

12.8V 3600mAh 4S1P 26650 LiFePo4 battery

Battery Type

Lithium Iron Phosphate Battery

Brand

VCELL/OEM

Model

VP-LF12-3600

Nominal Voltage

12.8V

Nominal Capacity

3600mAh

Charge Cut-Off Voltage

14.6V

Discharge Cut-Off Voltage

10.0V

Standard Charge

0.2C

Max charge current

1.0C

Standard discharge current

0.2C

Maximum Continuous Discharge Current

3.0C

Peak Discharge Current

5.0C(<3S)

Charge temperature

0~45

Discharge temperature

-20~+65

Size(L*W*H)

110*29*70mm Max Or Customized

Weight

Approx 345g

Cycle life

> 2500 cycles at 100% DOD,1C charge/discharge

Life Time

10 Years

Wire/Connector

TBD


Vcell Power 12.8V 3600mAh 4S1P 26650 LiFePO4 battery combines high safety, long cycle life, and reliable performance in a compact 110 × 29 × 70 mm design. Built with premium LiFePO4 cells, it delivers stable power, fast charging capability, and excellent thermal stability for industrial and portable applications. With customizable BMS, connectors, and wiring options, it is an ideal rechargeable battery solution for medical devices, security systems, portable electronics, backup power, robotics, and IoT equipment, making it an excellent choice for OEM and ODM battery projects.

Product Specifications Of Vcell Power 12.8V 3600mAh 4S1P 26650 LiFePo4 battery

Battery TypeLithium Iron Phosphate Battery
BrandVCELL/OEM
ModelVP-LF12-3600
Nominal Voltage12.8V
Nominal Capacity3600mAh
Charge Cut-Off Voltage14.6V
Discharge Cut-Off Voltage10.0V
Standard Charge0.2C
Max charge current1.0C
Standard discharge current0.2C
Maximum Continuous Discharge Current3.0C
Peak Discharge Current5.0C(<3S)
Charge temperature0~45℃
Discharge temperature-20℃~+65℃
Size(L*W*H)110*29*70mm Max Or Customized
WeightApprox 345g
Cycle life> 2500 cycles at 100% DOD,1C charge/discharge
Life Time> 10 Years
Wire/ConnectorTBD

Detailed images of Vcell Power 12.8V 3600mAh 4S1P 26650 LiFePo4 battery

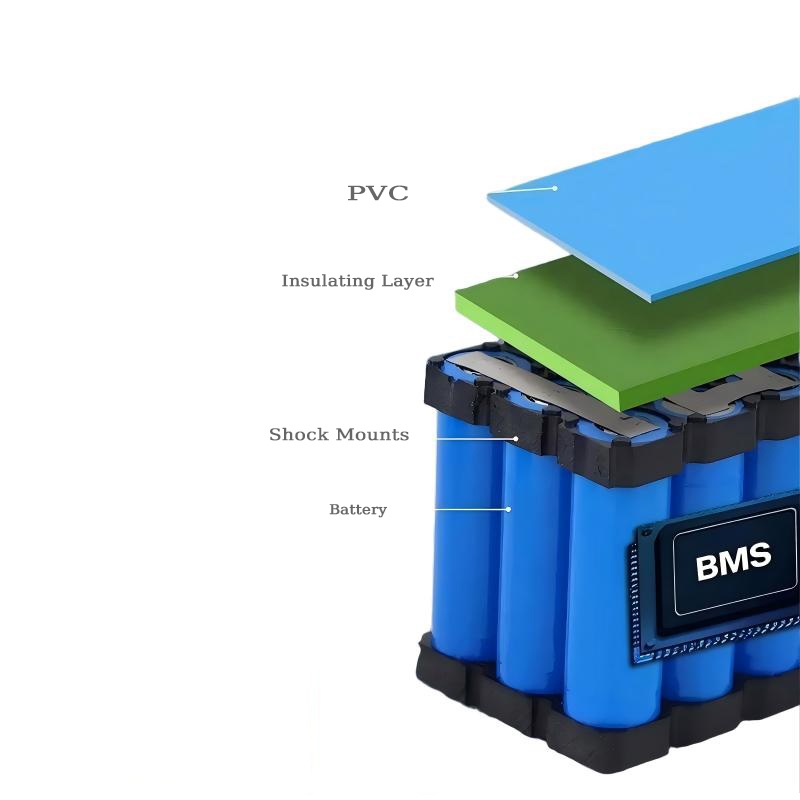

12.8V 3600mAh 4S1P 26650 LiFePo4 battery (4).jpg

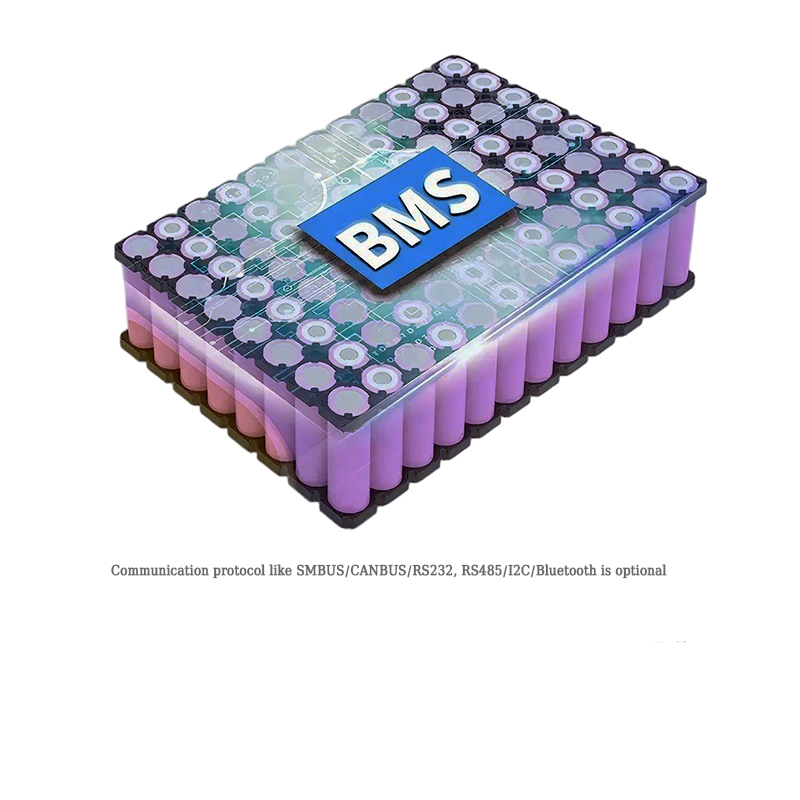

12.8V 3600mAh 4S1P 26650 LiFePo4 battery (5).jpg


Why Choose Vcell Power 12.8V 3600mAh 4S1P 26650 LiFePo4 battery

1. More than 2500 charge-discharge cycles, built to last.

2. LiFePO4 chemistry offers outstanding thermal stability with a lower risk of overheating, making it ideal for demanding applications.

3. Its compact design makes it a perfect fit for tight spaces, offering a lightweight, maintenance-free upgrade compared to bulky and less efficient lead-acid batteries.

4. Built-in BMS,provides comprehensive protection against overcharge, over-discharge, overcurrent, short circuit, and extreme temperatures.

5. The discharge temperature range spans -20°C to +65°C, ensuring stable equipment operation across diverse conditions, such as cold storage environments or outdoor field operations.

6. Maintenance-free and eco-friendly, it requires no water refilling, poses no risk of acid leakage, and eliminates the need for periodic equalization charging; fully RoHS-compliant, it serves as a green energy        solution that helps you achieve your sustainability goals.

7. Supports customized dimensions, connectors, cables, PCM/BMS, and battery pack assembly for OEM/ODM projects.

12.8V 3600mAh 4S1P 26650 LiFePo4 battery (6).jpg

Main Applications For Vcell Power 12.8V 3600mAh 4S1P 26650 LiFePo4 battery

Medical Devices: Powers portable monitors, diagnostic equipment, and medical carts reliably.

Industrial & Robotics: Ideal for AGVs (Automated Guided Vehicles), industrial tools, and testing instruments.

Lighting: Perfect for LED emergency lights, solar street lights, and engineering lighting lamps.

Consumer Electronics: Suitable for portable speakers, gaming devices, and power backup systems

12.8V 3600mAh 4S1P 26650 LiFePo4 battery (1).jpg

About Us

Vcell Power Group is founded in 2001, specialized in the research, design, manufacture and sales of rechargeable batteries, including li-ion battery, lithium polymer battery, LiFePo4 battery. As an advanced and innovative battery manufacturer, we aim to supply the highest quality batteries to our customers.

12.8V 3600mAh 4S1P 26650 LiFePo4 battery (3).jpg

12.8V 3600mAh 4S1P 26650 LiFePo4 battery (2).jpg

OEM/ODM Customization Available

Contact our sales team today to discuss your specific voltage, capacity, connector, or packaging requirements. We offer expert engineering support, fast lead times, and competitive wholesale pricing for global buyers.
